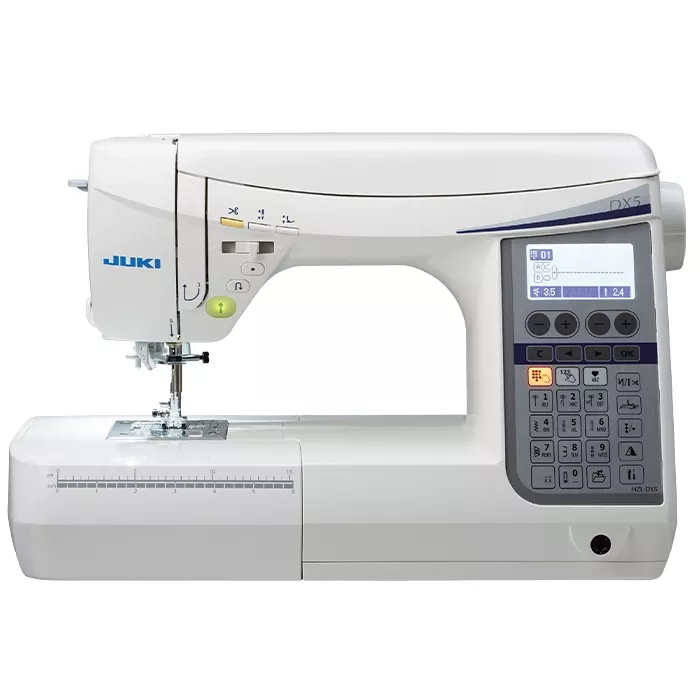

HZL-DX5/UL-P
Professional Quality Quilting and Sewing Machine with 185 Stitch Patterns and 3 Fonts
$1,599.00
In stock
SKU
81010829
About This Product
Looking for a reliable and dependable machine? Achieve perfection stitch by stitch with the HZL-DX5! This computerized household machine incorporates JUKI’s industrial sewing machine technology to produce superior sewing performance and stitch quality.
Working with heavy or thin fabrics? This machine is equipped with functions to handle all types of fabrics! The box feed system feeds those hard to feed fabrics with ease by staying in contact with the fabric longer providing consistent stitches.
Also, the HZL-DX5 is equipped with a straight stitch slide plate that prevents the fabric from being fed to the needle hole.
Enjoy the satisfaction of creating using high-quality finishes including overlock stitches and lace patterns. Other sought-out features include presser foot pivot function, thread trimming, needle up/down, straight stitch lever, and an automatic needle thread that allows you to get the most out of your sewing experience. Discover superior sewing with the HZL-DX5 at your local JUKI Dealer!
Features
Presser Foot Pivot Function
Sew corners or pivot with ease, when you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movements.
Free Motion
Enjoy both straight stitch and zig zag by just flipping the switch and dropping your feed dogs. Adjust the presser foot height for easy movement.
Straight Stitch Slide Plate
Simply slide the front lever to switch to a single needle hole. The single needle plate will not allow fabrics to be pushed into the needle hole. Ready to free motion stitch with precision and perfection!
Automatic Thread Trimming
With the push of a button or the click of a heel, you can now automatically trim thread.
Buttonhole Sensor System
With Juki’s combination of industrial and modern technology, this system automatically measures and evenly sew on both the right and left sides to create beautiful buttonholes.
Adjustable Starting and Reverse Stitch Speed
Adjust the stitch speed by selecting fast, normal, or slow.
Lock Stitch
Choose between two kinds of “Reverse Stitch” and “Lock Stitch” at the start and end of sewing. If you press the “Lock Stitch” button in the middle of the sewing pattern, the machine stops sewing one cycle of the pattern.
Specifications
Sewing Speed
1050 SPM
Needle Type
130R / 705H
Number of Stitches
185
Number of fonts
3 alphabetic and numeric fonts
Maximum Zig Zag Width
0.3" (7mm)
Maximum Stitch Length
0.2" (5mm)
Number of Buttonholes
16
Presser Foot Lift
Electronic
Adjustable Foot Pressure
Yes
Bobbin Type
15 Class
Machine Weight
21.6lbs
Dimensions
17.5"(W) x 11.5"(H) x 8.25"(D)
Accessories
Upgrade Your Sewing Experience with Standard and Optional Accessories.
Standard Presser Foot
This standard presser foot is used for sewing straight stitches and zigzag
stitches. It can be used to sew lightweight to heavyweight materials.
- The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.
Zipper Presser Foot
This presser foot is used for closely sewing along the edges of a zipper.
- Since this presser foot has a pin on the left side and on the right side
for attaching it to the presser foot holder, you can attach this presser
foot on either side of the needle, depending on which side of the
zipper is being sewn. - This presser foot can cleanly sew along the edges of the zipper
without hitting the teeth.
Overcasting Presser Foot
This presser foot is used to sew overcasting in order to prevent the cut
edges of fabric from fraying.
- Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering.
In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage. - This presser foot cannot be used to sew zigzag stitches or overcasting by 3-point zigzag.

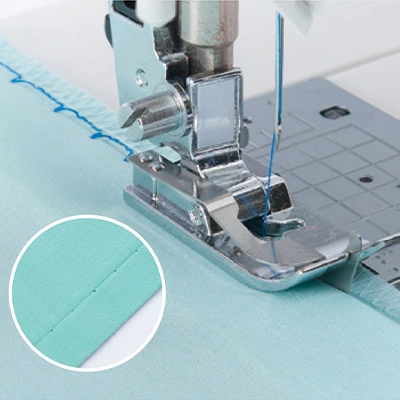

Blind Stitch Presser Foot
This presser foot is used for sewing blind hem stitches, which are sewn along the hems of pants and skirts to be invisible from the right side of the fabric.
- By sewing with the fabric fold aligned on the guide of this presser foot, only a few threads of the fabric will be uniformly caught in the stitch.
- Adjust the needle entry point or guide position according to the fabric before sewing.
- You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.
Buttonhole Presser Foot
This presser foot is used to automatically sew buttonholes.
- You can sew buttonholes of the appropriate size by simply placing
the button in the button holder of the presser foot.
Quilt Guide
This guide is used for sewing equally spaced rows of stitching.
- Insert this guide into the hole of the presser foot holder or the walking
foot, and then sew while lightly tracing this guide along stitching. - Adjust the spacing of the stitching by changing how far this guide is
inserted.

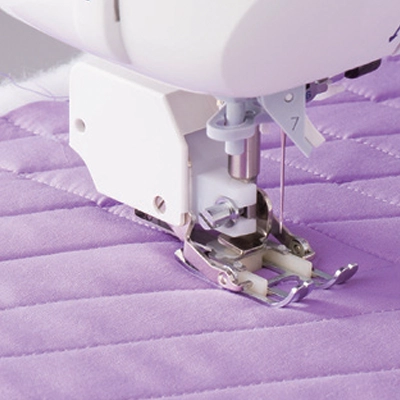

Walking Foot
This presser foot is used for stretch fabrics (such as knits), hard-to-feed
materials (such as vinyl-coated fabric) and unevenly fed material (such as quilting or fabric with a nap).
- This presser foot is equipped with an upper feed dog that works together with the feed dog of the sewing machine to feed the material in order to prevent bunched stitching and uneven feeding.
- By inserting the guide bar, this presser foot can be used to quilt equally spaced seams.

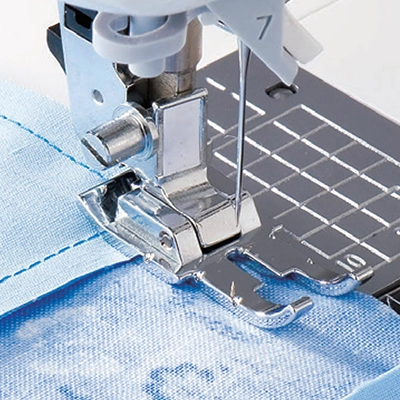

Patchwork Presser Foot
This presser foot is used for piecing together patchwork with a seam
allowance of 1/4" (6.4 mm) or 1/8" (3.2 mm).
- Always ensure needle is set to center straight stitch. Align the edge of the fabric with the outer presser foot guide for a seam allowance of 1/4" or with the inner
presser foot guide for a seam allowance of 1/8". - There are also marks at a 1/4" spacing at the front and back of the presser foot, allowing you to see the width of the seam allowance before and after needle entry.

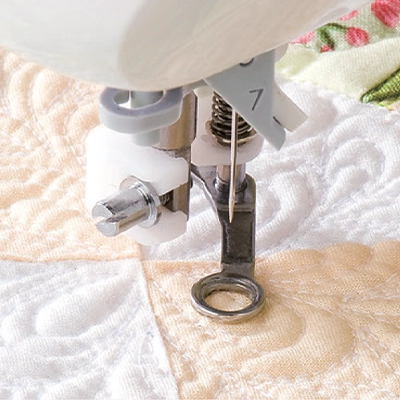

Quilt Presser Foot
This presser foot is used for free-motion quilting.
- With the feed dogs lowered, you can freely move the fabric to draw
using stitching. - Use the screw to adjust the height of the presser foot according to
the thickness of the fabric, so the fabric moves smoothly.
Foot controller
This controller can be used to start/stop sewing and adjust the sewing speed with your foot.
- Controlling the sewing machine with your foot leaves both of your
hands free while sewing.
Bobbin
These bobbins are designed specifically for JUKI household sewing machines.
- Since the bobbin type differs depending on your sewing machine model, be sure to use the bobbin designed for your machine.

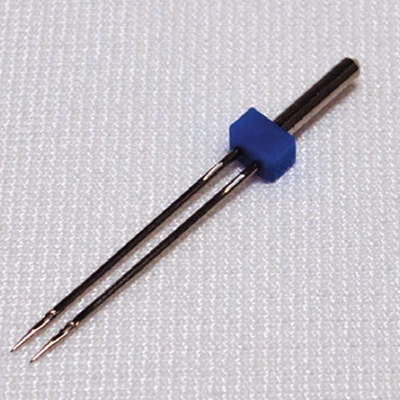

Twin Needle
You can sew straight lines and decorative patterns in parallel with two needles with 0.07" (2 mm) spacing.
- For beautiful decorative stitches two threads can be a perfect addition.
- Set the sewing machines with 2 needle settings with optional
functions. Not all stiches are approved for twin needle design.
Auxiliary Spool
This spool pin is used when another thread spool is needed for twin needle sewing or bobbin winding.
- Use this spool pin with a thread spool for twin needle sewing, spare
machine threading or bobbin winding.
Hard case
Needle Set
Knee lifting lever
Manual Buttonhole
T-Shape Screwdriver
Seam Ripper
Cleaning Brush
Power Cord
Instruction Manual
